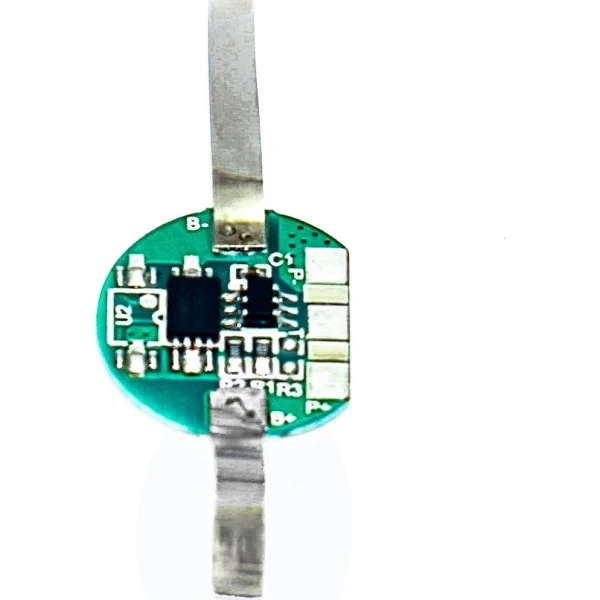

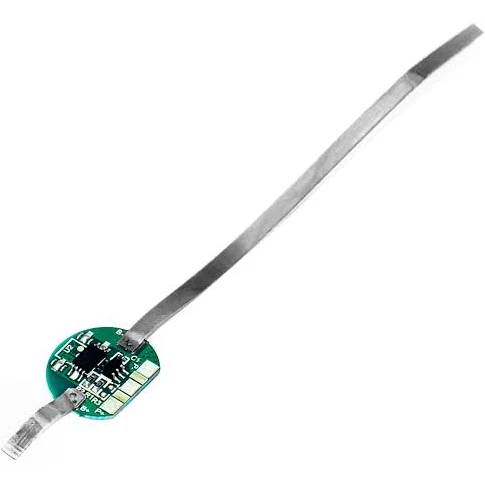

1S 3A 4.2V BMS Module for 18650 Lithium-Ion Battery Protection and Charger
Original price was: ₹59.₹49Current price is: ₹49.
Out of stock
About 1S 3A 4.2V BMS Module for 18650 Lithium-Ion Battery Protection and Charger
This 1S 3A BMS Li-Ion Battery Protection Board With Nickel Strip is commonly used to manage and protect the battery from overcharge or discharge. It is very safe and reliable to use. This module provides short circuit protection; overload, discharge and overcharge protection. This little piece of equipment ensures the safety and protection of your battery pack. So that the battery can provide you with long service life.
This module has low current consumption and provides stable performance. Due to its small size, excellent performance and low cost. This product is suitable to meet a wide range of requirements. it is easy to install this module on top or bottom of the cell.
SPECIFICATION
| Overcharge Release Voltage | 4.23±0.05V |
| Overcharging Voltage Range | 4.25±0.05V |
| Over-discharge Voltage Range | 2.54±0.1V |
| Over-Current Detection | 2A~3A |
| Nominal Voltage | 3.7V |
| Diameter | 17mm |
