23S 72V 35A BMS Waterproof with Balance Charging for LiFePO4 Battery

Original price was: ₹2980.Current price is: ₹2890.

Out of stock

SKU: 754644 Category: Tag:
Description
About 23S 72V 35A BMS Waterproof with Balance Charging for LiFePO4 Battery

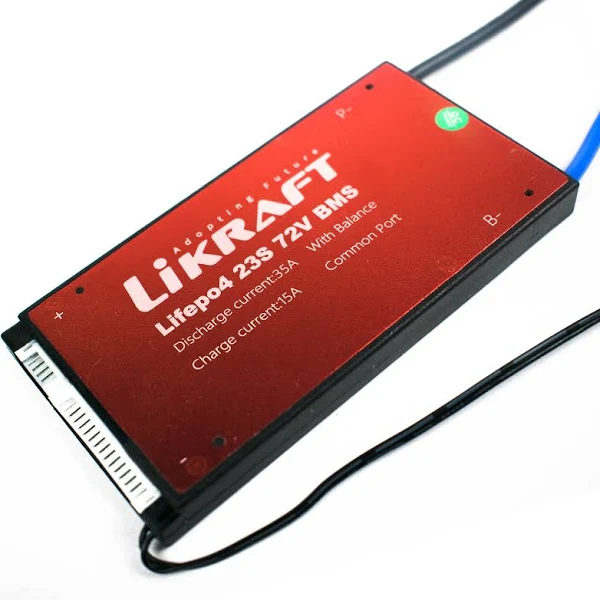

This is a 23S 72V 35A Lithium Battery Protection Board (PCM BMS) for balance charging. It uses an A-level protective integrated circuit IC. Its high load capabilities and 35A continuous discharge current performance make it a reliable solution for battery packs. It features a power Mosfet with a high voltage resistance and a low inner resistance. The heat sink will significantly aid cooling.

Features

  1. State of charge calculations.
  2. Cell over-voltage and under-voltage protection.
  3. Intelligent battery balancing (passive).
  4. Fully sealed waterproof technology, with waterproof, dustproof, shockproof, anti-squeezing, and other protective functions.
SPECIFICATIONS
Product Type Battery Management System
Battery Type Lithium Iron Phosphate (LiFePO4)
Brand Likraft
Max. Continuous Discharge Current 35A
Over Current Protection Current 100A
Charge Voltage 85V
Max. Charge Current 15A
Balance Current 30±5mA
Balance Detect Voltage 3.5V
Working Current 100µA
Overcharge Detect Voltage 3.75±0.05V
Overcharge Release Voltage 3.55±0.05V
Over-discharge detection Voltage 2.2±0.1
Over-Discharge Release Voltage 2.7±0.1
Cable Size 12 AWG
Size 127.4x65x11.4mm
