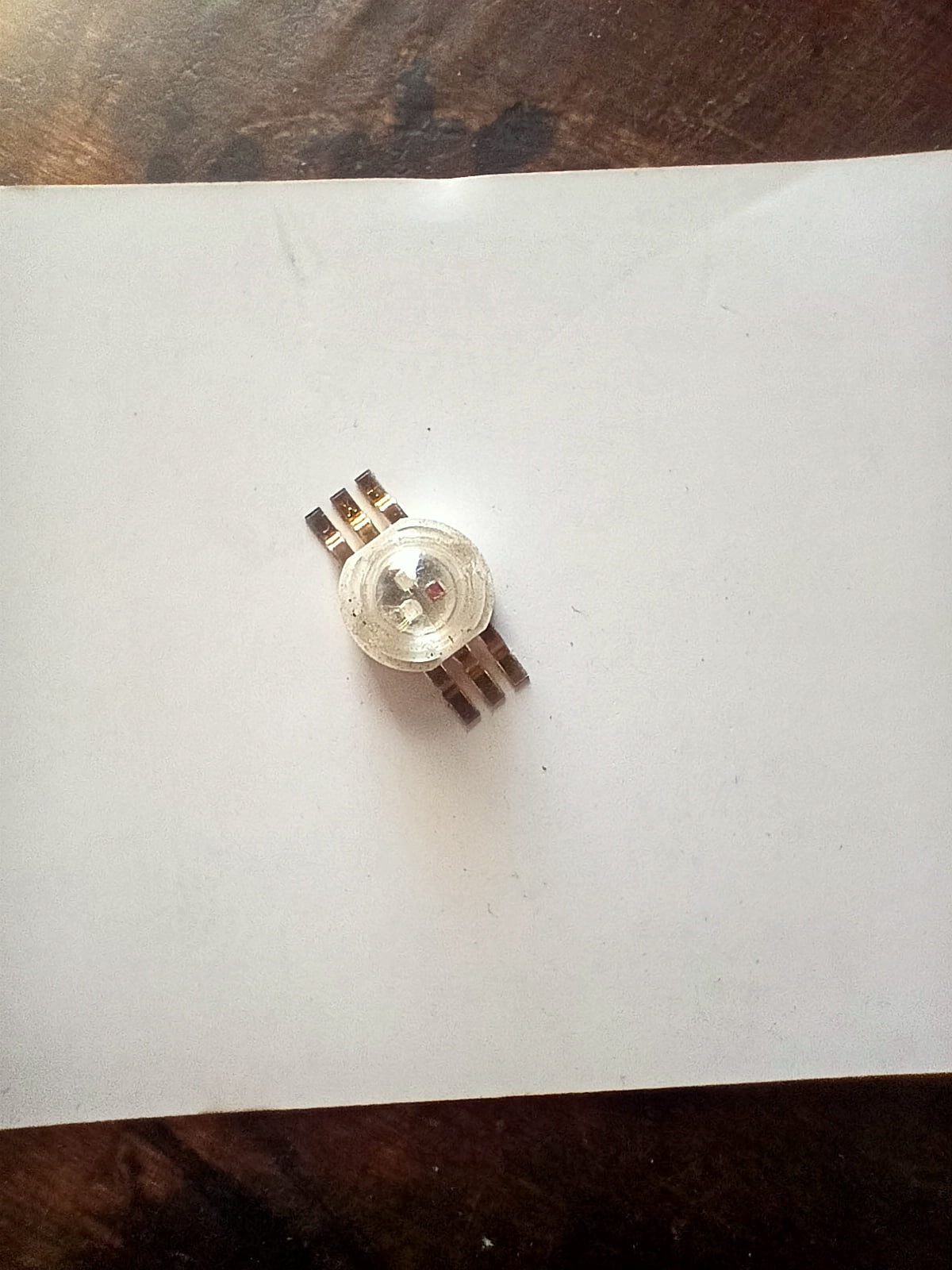

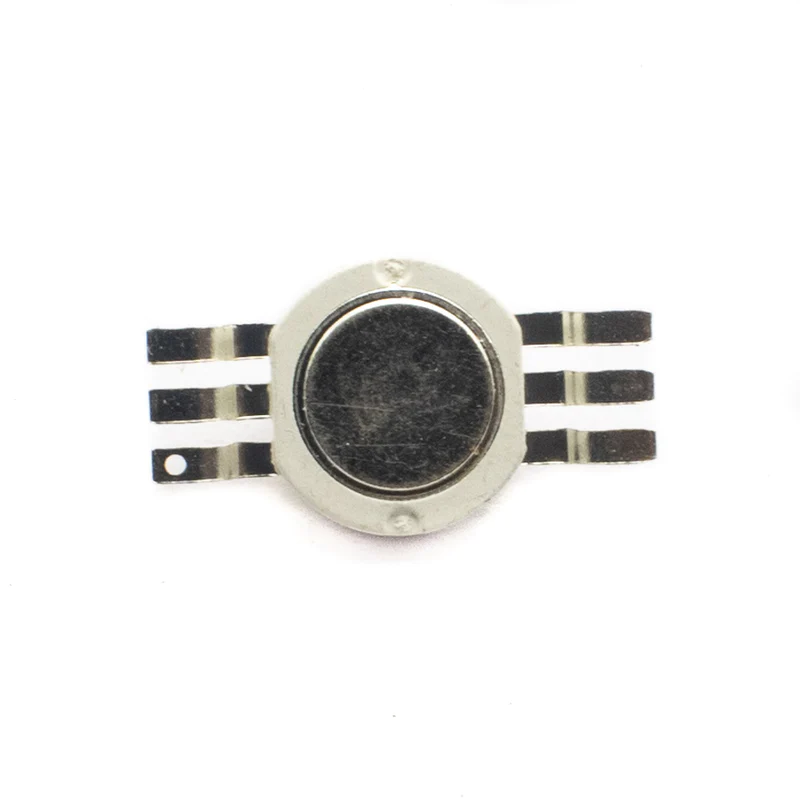

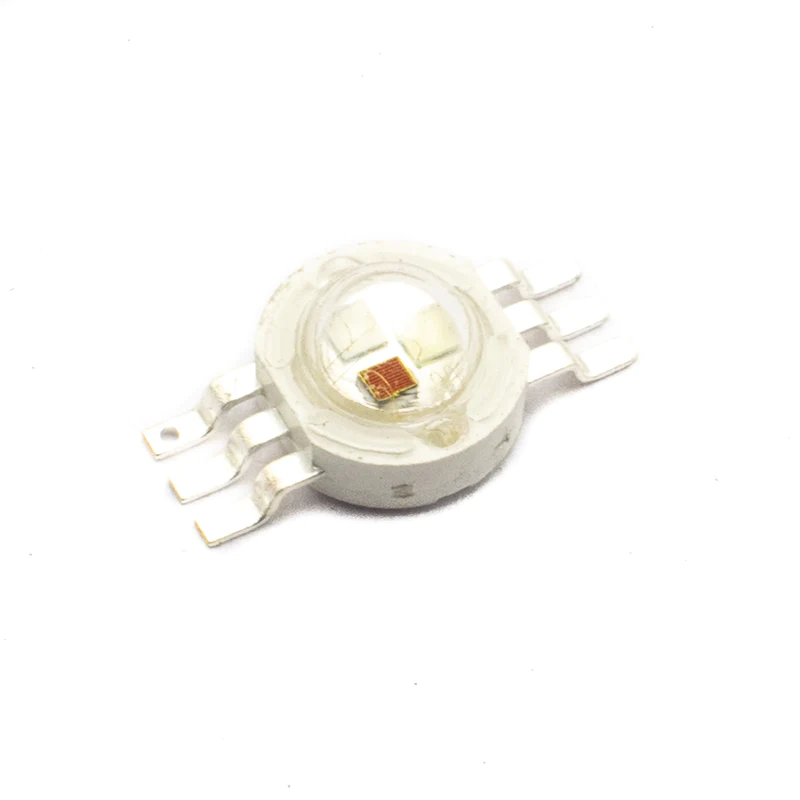

- This is a high-quality 9Watt Red+Green+Blue SMD LED which means each Colour is of 3Watts. It has a total of six pins, two pins for each colour LED. These LED’s consume low power and emits much intense bright light. There is a built-in heat sink at the bottom. This Led is suitable for PWM and it is fully dimmable.
- The LED Bead is the fundamental element of a high-power LED module. The Bead is designed to be mounted to a heat-conducting surface to draw away excess heat from the LED. See our complete assortment of LED Bead aluminium base plates, heat sink, and accessories.
- They are extremely bright, many times more than a 5mm LED, and generally produce a wide angle of light disbursement which can be narrowed through the use of an external lense.
LED Shape Round Emitting Colour Red, Green, Blue Power 3x3W= 9W Max Rated Current 600-700mA Brightness 80-100(Red), 110-140(Green), 30-50(Blue) Colour Wavelength Red: 620nm, Green: 520nm, Blue: 460nm Reverse voltage 5V Operating Voltage 2-2.6VDC(Red), 3-3.6VDC(Green), 3-3.6VDC(Blue) LED Type SMD
