3S 100A BMS 11.1V for 18650 Lithium-IonBattery with Balance Protection

Name: 3S 100A BMS 11.1V for 18650 Lithium-IonBattery with Balance Protection
SKU: 75004
Availability: OutOfStock

Original price was: ₹1059.Current price is: ₹998.

Out of stock

SKU: 75004 Category: BMS Tag: bms

Description

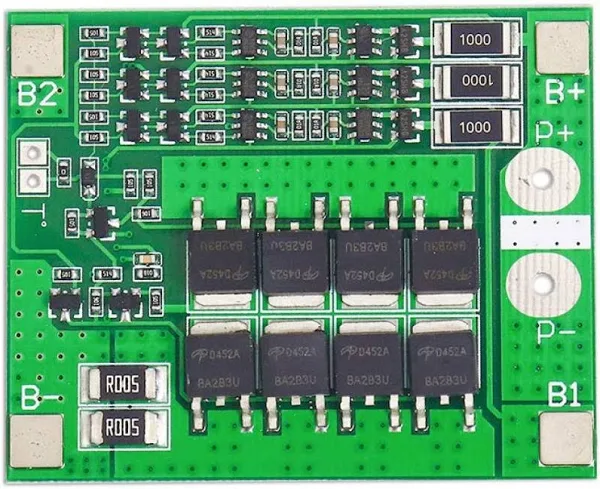

About 3S 100A BMS 11.1V for 18650 Lithium-IonBattery with Balance Protection

A battery management system (BMS) provides protection during the charging and discharging process, Increases the lifetime of the battery. This 3S 100A Lithium-Ion BMS is a high-quality BMS for Lithium-Ion Battery. The module interfaces with 3 Lithium-Ion cells of 3.7V associated in an arrangement so that they make up an 11.1V Battery Pack. The BMS provides Over-discharge protection, over-current protection, and load short circuit protection. This BMS has a Balance Charge feature. The maximum continuous charge/discharge rate is 100A.

SPECIFICATION

Model	HX-3S-F100A
Over Charge Voltage Range	4.28±0.05V
Over Pressure Voltage Range	2.5±0.05V
Max. Working Current	100A
Quiescent Current	<30µA
Internal Resistance	300mΩ
Balance Current	65mA
Charging Voltage	12.6V DC
Charge Current Limit	10A
Operating Temperature	-40°C to 50°C
Automatic Recovery on the release of a fault condition	Yes
Size	70x60x8.5mm
