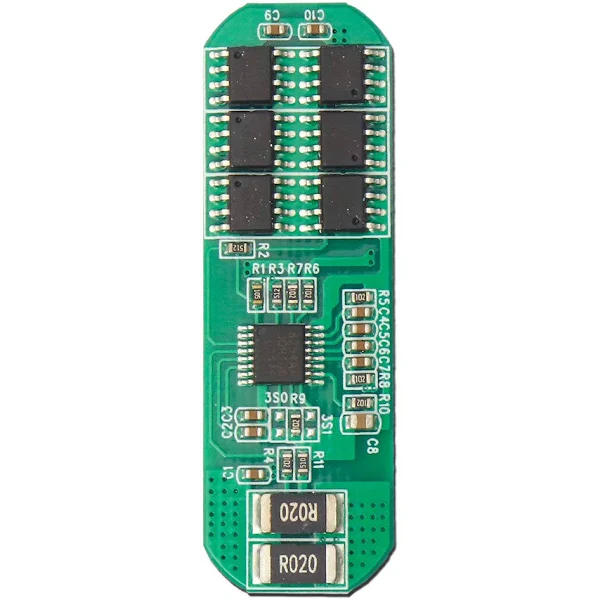

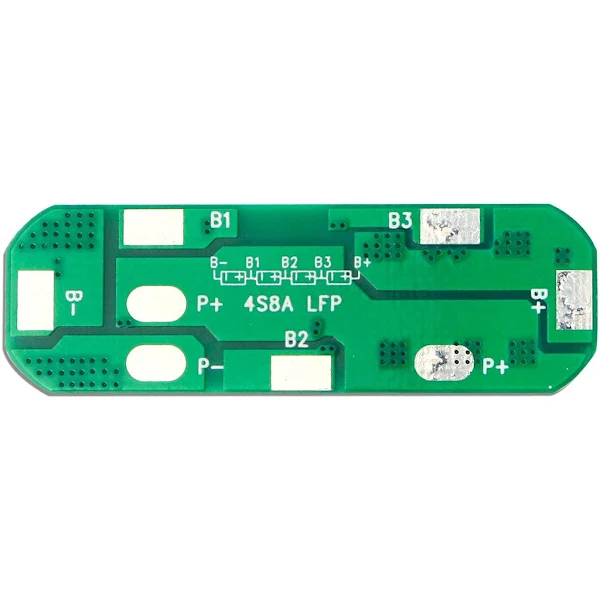

4S 8A 12.8V LiFePO4 BMS Battery Protection Board Original

Original price was: ₹300.Current price is: ₹205.

Out of stock

SKU: 234546345 Category: Tag:
Description
About 4S 8A 12.8V LiFePO4 BMS Battery Protection Board
  1. High-accuracy voltage detection circuit;
  2. Terminal of the charger using a high voltage device;
  3. Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit);
  4. MOS transistor can control the battery charge and discharge;
  5. Low standby current consumption.
SPECIFICATIONS
Single overcharge detection voltage 3.7V±0.025V
Overcharge detection delay time 1.5s
Single overcharge release voltage 3.60V±0.04V
Cell balance detection voltage 3.5V±0.025V
Cell balance release voltage 3.50V±0.025V
Balance Current 70mA±10mA
Single over-discharge detection voltage 2.10V±0.08V
Over-discharge detection delay time 1.5s
Single over-discharge release voltage 2.40V±0.1V
Quiescent Current ≤40µA
Sustainable Discharge Current 8A
Sustainable Charging Current 8A
Stop Charging at Temp. >50°C
Stop Discharging at Temp. >70°C
Size 70x17x3mm
