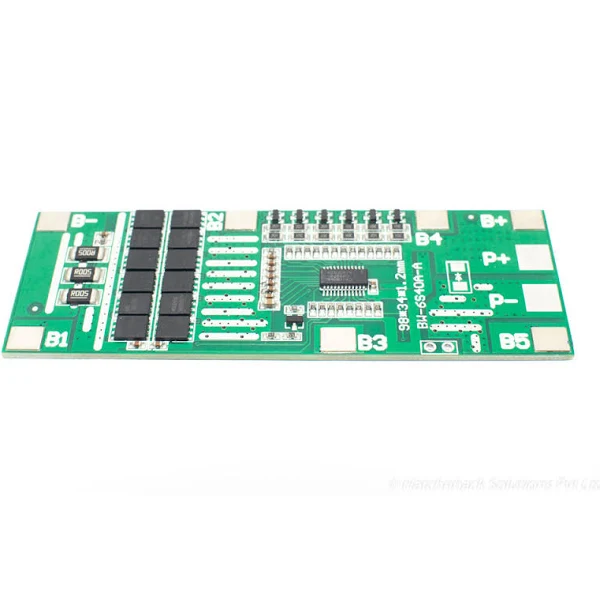

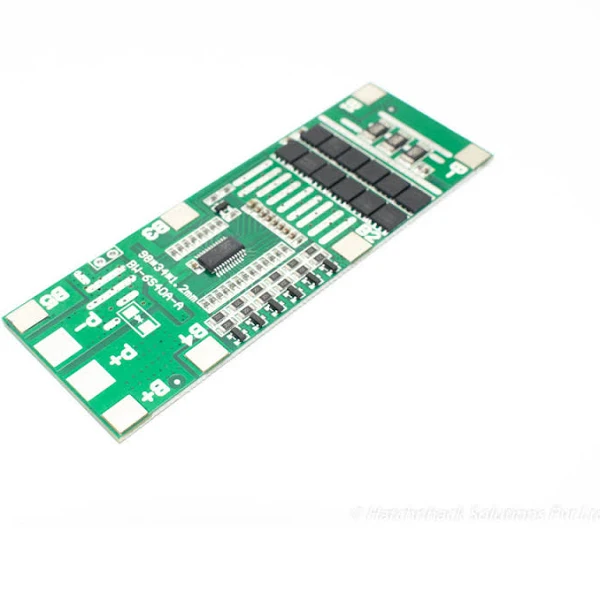

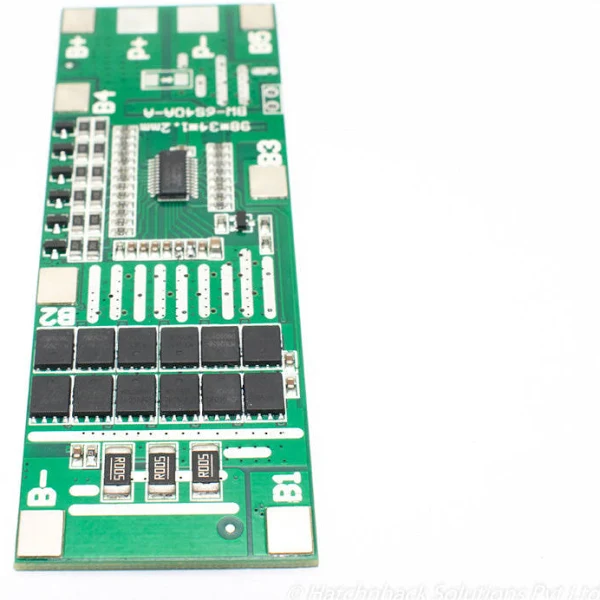

6S 40A BMS For 18650 Lithium Battery Protection Board

Name: 6S 40A BMS For 18650 Lithium Battery Protection Board
SKU: 75015
Availability: OutOfStock

Original price was: ₹699.Current price is: ₹624.

Out of stock

SKU: 75015 Category: BMS Tag: bms

Description

About 6S 40A BMS For 18650 Lithium Battery Protection Board

This 6S 40A 18650 Lithium Battery Protection Board has protection against short circuit, over-charge and over-discharge. It is designed to monitor the status of batteries, control charging and discharging. This module can be connected to 6 batteries for charging/discharging. The maximum current for the module is 40A.

It is best suitable for nominal voltage 3.6V, 3.7V lithium battery(Including 18650,26650, lithium polymer batteries).

SPECIFICATIONS

Battery Support	Max 6 Cells
Model	BW-6S40A-A
Maximum Working Current	40A
Maximum Continuous Discharge Current	40A
Maximum Instantaneous Discharge current	70A
Charging Voltage	25.5V
Overcharge Detection Voltage	4.25±0.025V
Overcharge Release voltage	4.15±0.05V
Over-discharge detection voltage	2.7 ± 0.1V
Overcurrent protection current	75±5A
Dimension (LxW)	98×34 (mm)
