Name: N20 DC 3V N30 Gear Motor Long Shaft Robot Car
SKU: 56291
Availability: InStock

Description

Motor applicable voltage: DC3V-5V (rated voltage is DC3.7V)

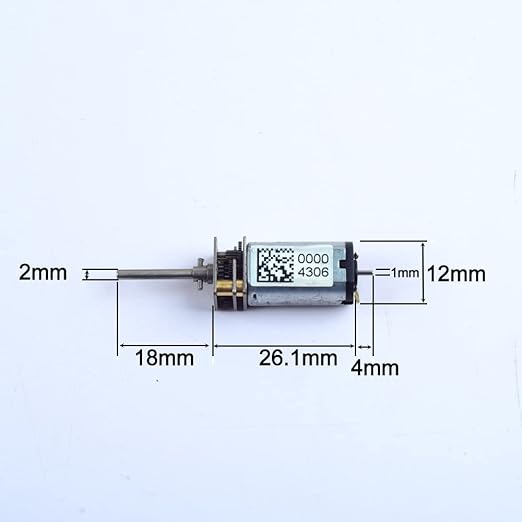

Motor specifications: 10*12*20MM (N30 motor)； Output shaft diameter: 2MM；Output shaft length: 18MM； Gear box specifications: 10*12MM
Reduction ratio: estimated to be between 12-15
Working voltage range: DC3V-5V；Rated voltage: DC 3.7V；Rated load: 200g.cm； No-load speed: 1590 rpm (plus or minus 10%)； No-load current: 0.35A
Package: 1pcs. It is fun to diy them, 🙂

Additional information

Weight	0.5 kg
Dimensions	21 × 18 × 5 cm
