Home ELECTRONIC Tv Accessories 24 inch LED /LCD TV Combo Board suitable for all Brand TV with Remote VS.TP53U.52.2
5 Volt 12 Volt DVD Power Supply Board Player Switched Mode (8 pin)
5 Volt 12 Volt DVD Power Supply Board Player Switched Mode (8 pin) ₹399 ₹299
Back to products
LED Backlight Strip 6 LED 3V, 24 Inch Long For 32 Inch TV (Generic) ₹599 ₹420

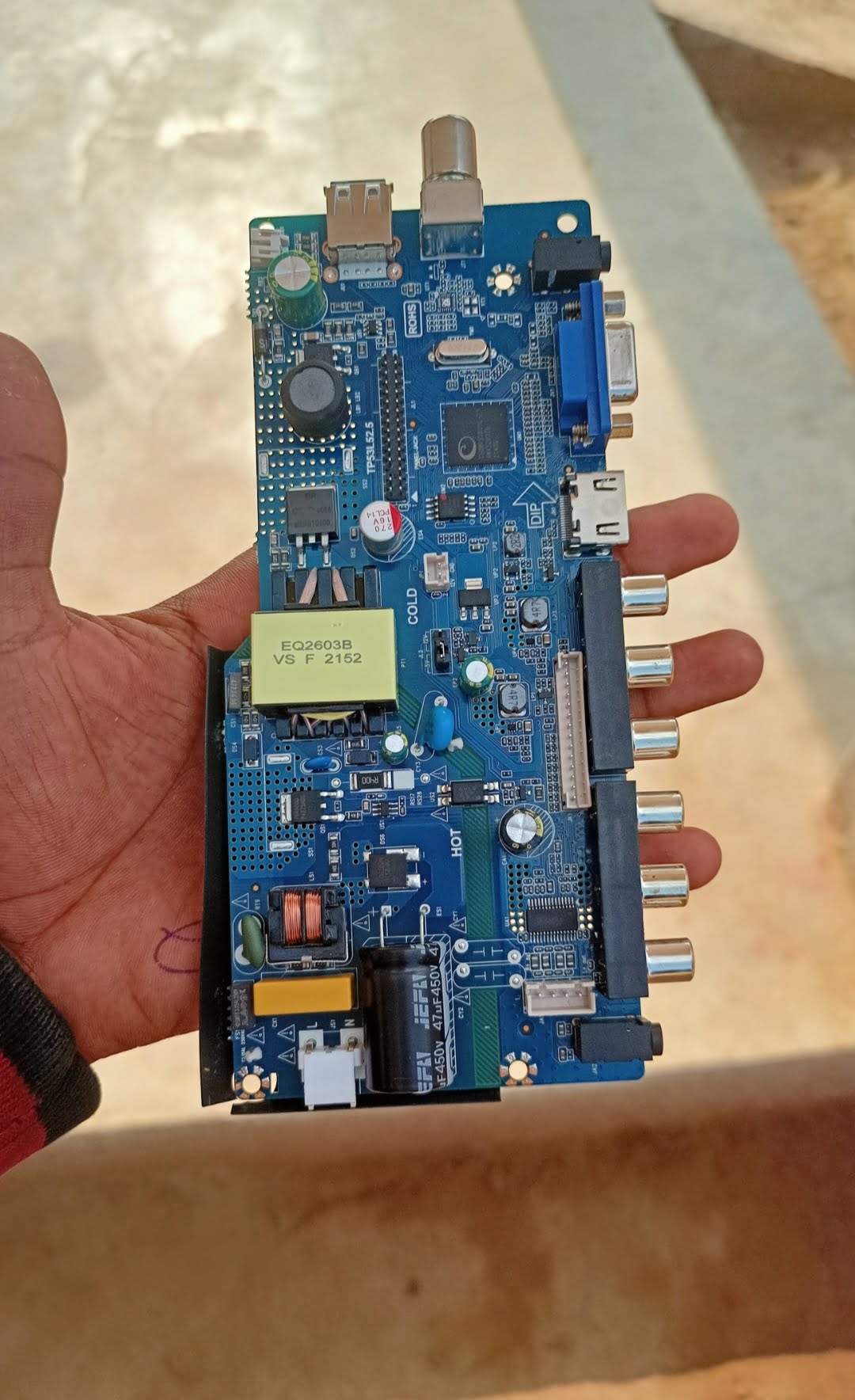

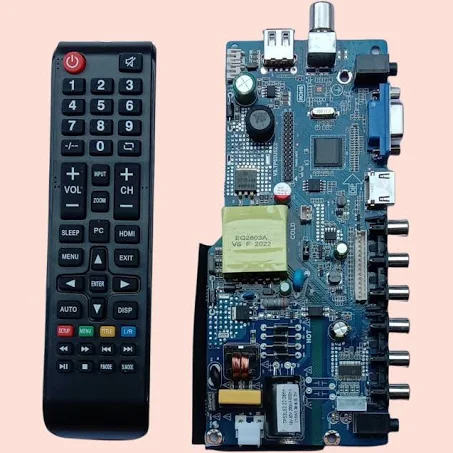

24 inch LED /LCD TV Combo Board suitable for all Brand TV with Remote VS.TP53U.52.2

Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)

₹1599

Category: Tv Accessories
Share:
  • Description
Description

Description

Note: Images are for representation purpose only, actual product may vary. Whatsapp us 9130642220 for real Images.

Description

22-24 Inch LED TV Combo Universal Board

24″ COMBO UNIVERSAL BOARD VS.TP53U51.2 ( NO SOFTWARE REQUIRED)

LED Backlight: 28V-55V 220mA to 280mA

Display Format: 1366Ă—768 (HD) and 1920Ă—1080 (FHD)

Aspect Ratio: 4:3, 16:9 & 16:10

GENERAL SPECIFICATIONS:

Input/Output Ports: HDMI, VGA, AV, USB, RF TV interface and Earphone Out

Audio O/P Power: 2 x 5 Watt (8 ohm)

Panel Voltage: DC +12V(Default) +5V(jumping setting)

USB Port: Yes (Firmware Upgrade and Multimedia Playback Support)

IR Control: Yes (Controllable by Remote Control)

Electrical Parameters:

Working Input Voltage: AC 220V

Maximum Current: 3000mA (Without Panel)

Standby Power: <0.2W (for motherboard only)

Maximum Current for USB: 500mA

How to Change Resolution:

1366Ă—768 (HD) => Source 03661

1920Ă—1080 (FHD) => Source 03662

Factory Service Mode:

Input 2580, Input 208, Input 815

Warranty:

7 Days Replacement warranty.

Package Include:

1 Ă— VS.TP53U51.2 (Combo Board), 1Ă— Remote.

1 review for 24 inch LED /LCD TV Combo Board suitable for all Brand TV with Remote VS.TP53U.52.2

  1. Rated 5 out of 5

    Sameer raghupati – October 13, 2022

    Best and geniue quality working well
