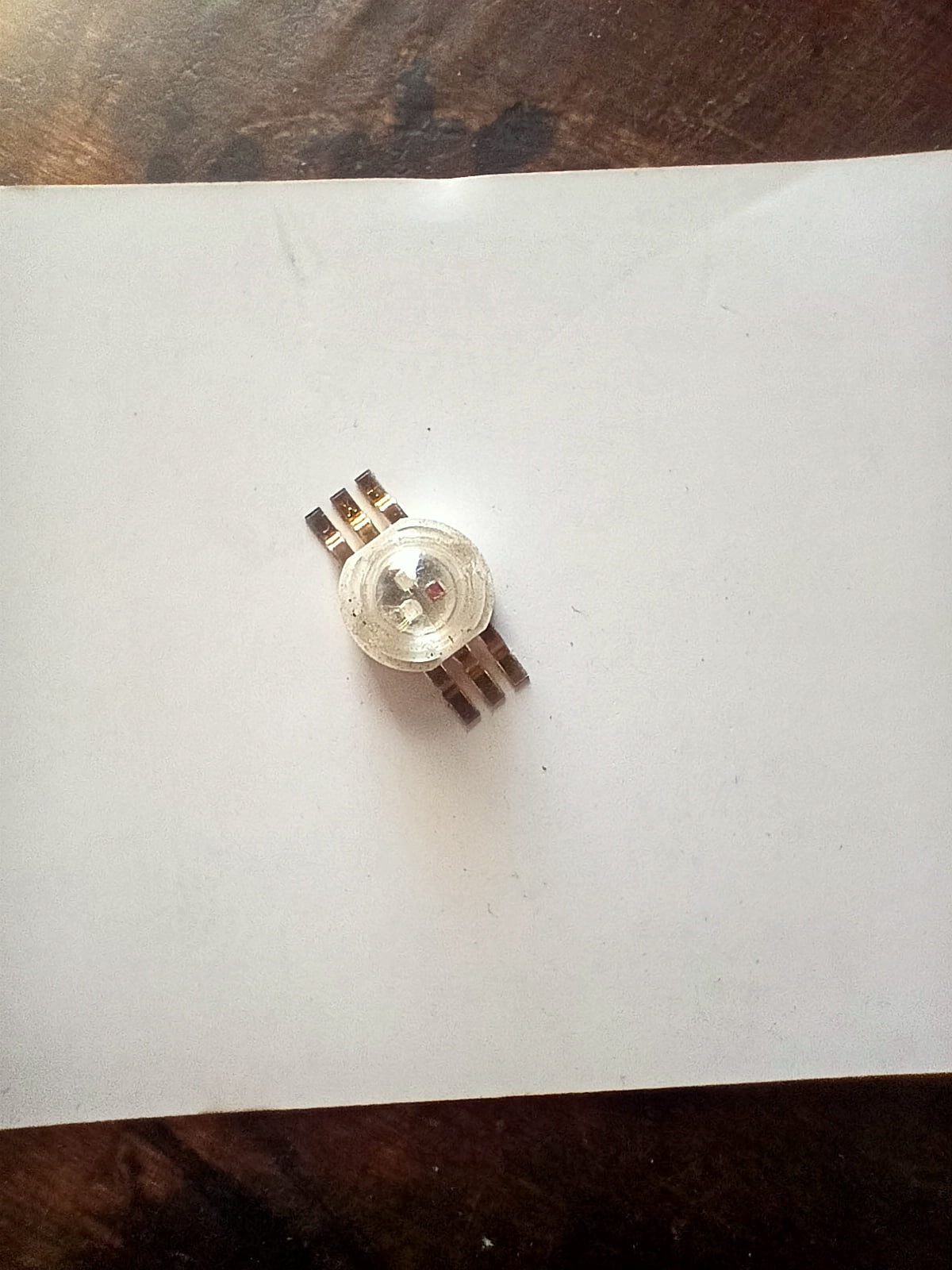

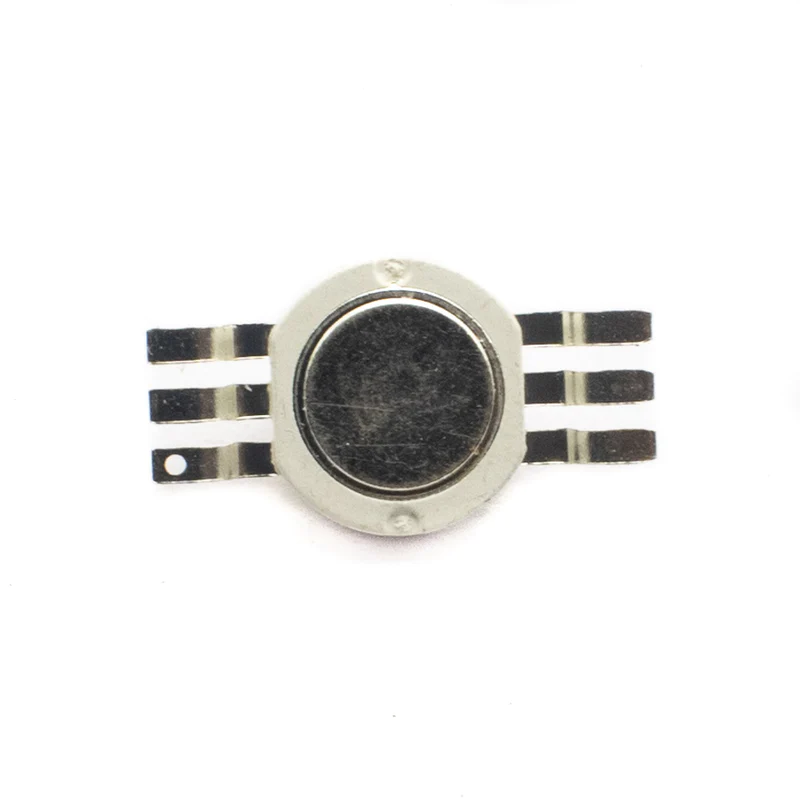

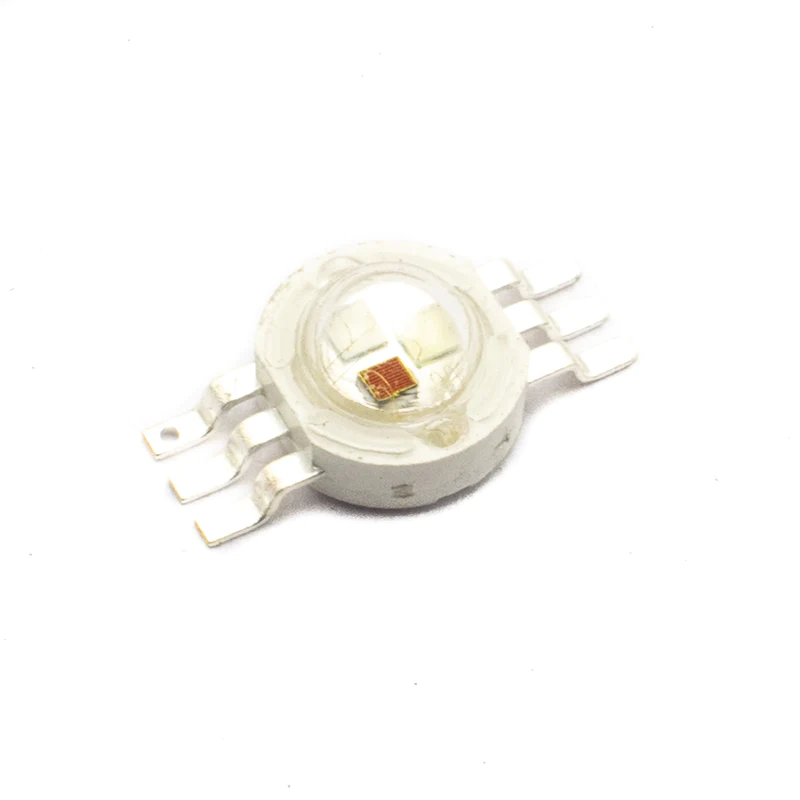

This is a high-quality 9Watt Red+Green+Blue SMD LED which means each Colour is of 3Watts. It has a total of six pins, two pins for each colour LED. These LED’s consume low power and emits much intense bright light. There is a built-in heat sink at the bottom. This Led is suitable for PWM and it is fully dimmable.
The LED Bead is the fundamental element of a high-power LED module. The Bead is designed to be mounted to a heat-conducting surface to draw away excess heat from the LED. See our complete assortment of LED Bead aluminium base plates, heat sink, and accessories.
They are extremely bright, many times more than a 5mm LED, and generally produce a wide angle of light disbursement which can be narrowed through the use of an external lense.

LED Shape	Round
Emitting Colour	Red, Green, Blue
Power	3x3W= 9W
Max Rated Current	600-700mA
Brightness	80-100(Red), 110-140(Green), 30-50(Blue)
Colour Wavelength	Red: 620nm, Green: 520nm, Blue: 460nm
Reverse voltage	5V
Operating Voltage	2-2.6VDC(Red), 3-3.6VDC(Green), 3-3.6VDC(Blue)
LED Type	SMD

Click to enlarge

3 Watt Each (Red, Green and Blue) RGB SMD LED High Quality

Name: 3 Watt Each (Red, Green and Blue) RGB SMD LED High Quality
SKU: 52695
Price: 32 INR
Availability: InStock
Rating: 5.00 (1 reviews)

Rated 5.00 out of 5 based on 1 customer rating

(1 customer review)

₹32

Category: led lights Tag: LED Smd

Description
Reviews (1)

Description

LED Shape	Round
Emitting Colour	Red, Green, Blue
Power	3x3W= 9W
Max Rated Current	600-700mA
Brightness	80-100(Red), 110-140(Green), 30-50(Blue)
Colour Wavelength	Red: 620nm, Green: 520nm, Blue: 460nm
Reverse voltage	5V
Operating Voltage	2-2.6VDC(Red), 3-3.6VDC(Green), 3-3.6VDC(Blue)
LED Type	SMD
