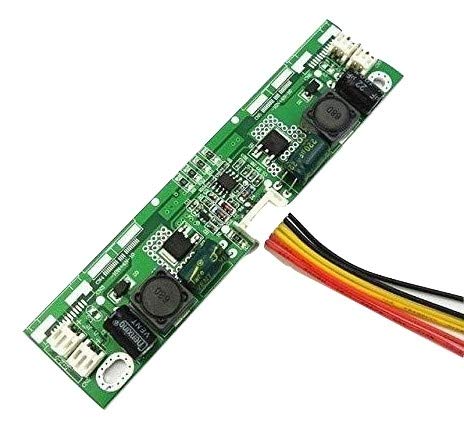

CA-266 Input-12V-28V, 26”-65”inch LED TV Backlight Driver Board Led Universal Inverter Constant Current Board

Category: Tv Accessories

Description
Reviews (0)

Description

Power supply condition input: support 10-28V DC input

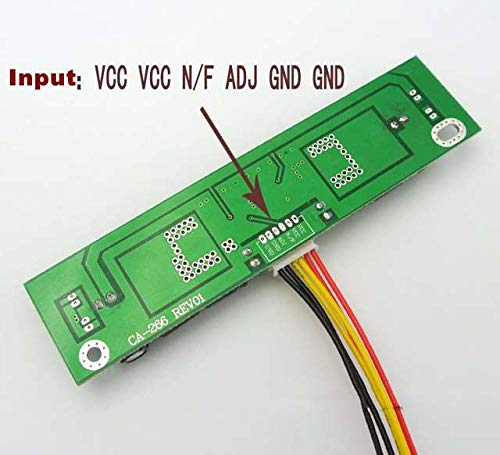

[Interface Definition 1: Power 2: Ground 3: Brightness Control 4: 5 Ground: switching signal [Interface]: red = input line, yellow line = switch / brightness adjustment, black wire = ground
Not provide technical support. you should know how to use it. If not, think twice before your order. Thanks!

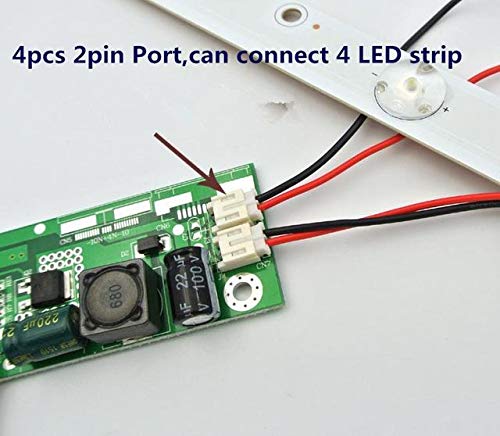

Output voltage: automatic adaptation below 88V (minimum limit for input voltage, no depressurization) Output current: the default 80mA. Increases the current by shorting the R22 R21 R18 R15 R24 resistor. Each resistor 80mA. Highest 480mA.
Please don’t touch the ADJ pin during the test!
