Description

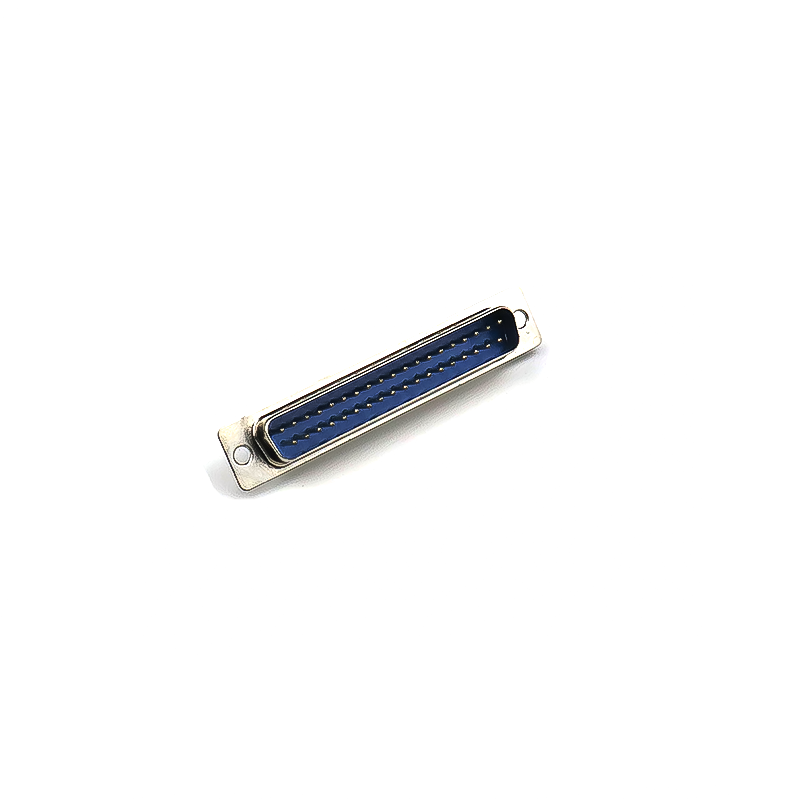

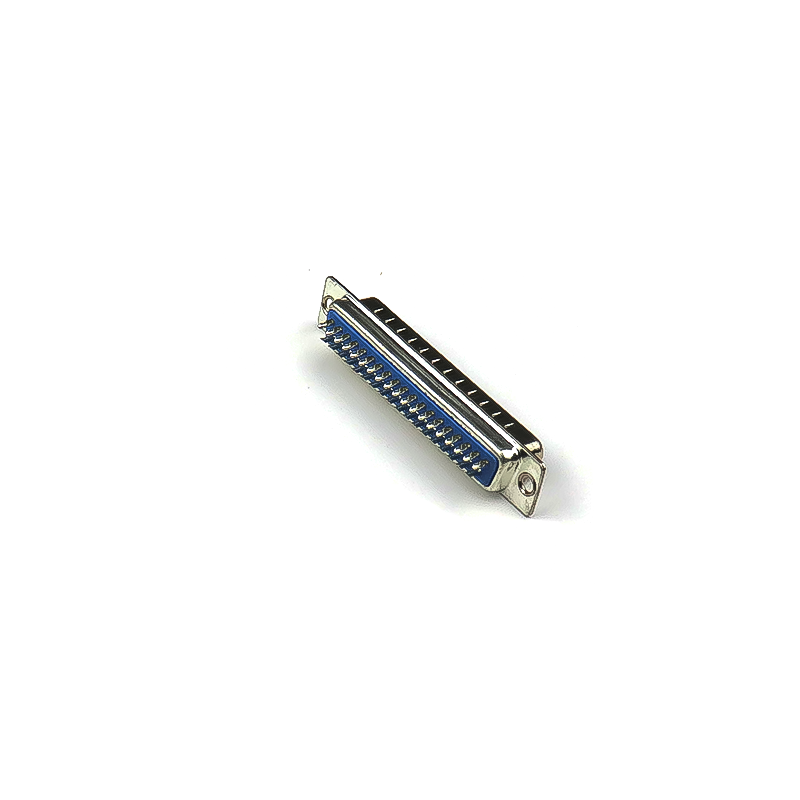

About DB37 Male Welded Connector – 37 Pin
- DB37 Male Welded Connector is the most common type of electrical connector.
- DB 37 connector is part of the D-sub miniature (D-sub) connector plug and socket family for computer and communication devices. DB-37 pins are arranged in rows of two, as one nineteen-pin row above an eighteen-pin row.
- DB37 connectors are designed to work with the EIA/TIA 232 serial interface standard, which determined the function of all nine pins as a standard so that multiple companies could design them into their products.
- DB37 connectors were commonly used for serial peripheral devices like keyboards, mice, joysticks, etc. Also, they are used on DB37 cable assemblies for data connectivity.
- Today, the DB37 has mostly been replaced by more modern interfaces such as USB, PS/2, Firewire, and others.
- However, there are still many legacy devices that use the DB37 interface for serial communication.
Specifications :-
Connector Type | DB-37 |
Connector | Male |
Voltage Rating (V) | 250V AC |
Current Rating (A) | 5 |
Insulation Resistance (M) | 1000 |
Contact Resistance | 20m |
Operating Temperature Range (C) | -55 to 125 |
Material | Metal and plastic |
Length (mm) | 69 |
Width (mm) | 12 |
Height (mm) | 15 |
Weight (gm) | 11 |
