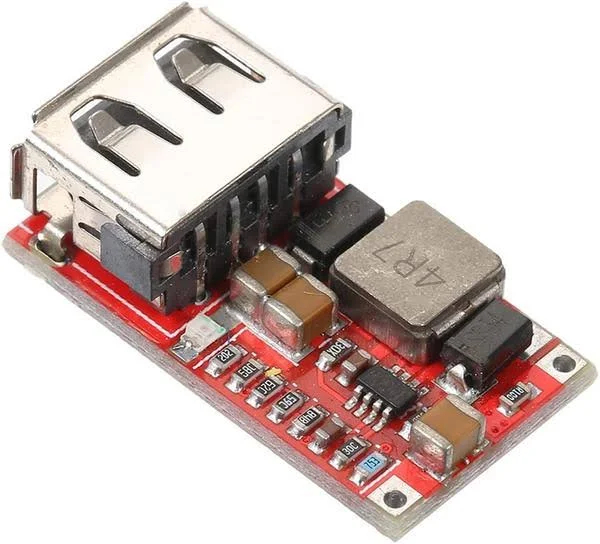

Non-isolated buck module (BUCK) synchronous rectification
Maximum Output Current: 3A MAX
Conversion efficiency: can up to 97.5% (6.5V step down to 5V 0.7A) (after short reverse protection and fuses test value)
Switch frequency: 500KHz
Output Ripple: 10mV around (12V to 5V3A) 20M bandwidth
Output indicator: Output voltage indicator is red
Operating temperature: Industrial grade (-40 to + 85 ) (the higher the ambient temperature, the lower the output power)
Output overvoltage protection: Yes, input 1.5A fuse, output 5V have 300W TVS tube clamp protection.
Flat copper inductor, improve conversion efficiency
With output overvoltage protection. There is 1.5A fuse, output 5V have 300W TVS tube protect your USB device
Using the latest USB identification circuit, perfectly compatible with IPHONE, the most of Android phones, IPAD etc
High-quality USB port
Output voltage indicator (RED)
Small size, Compact Size
Input with reverse polarity protection diode, will not damage when input connect incorrectly
Ultra-low static current, 0.85 mA only. Do not need to add switch when connected to the car battery, can be connected to car cigarette lighter cable or ACC power supply cable
