- Improve image quality in TV and CRT display
- Recommended supply voltage : 24V
- Supply voltage range : 16V to 33V
- Power dissipation : 9W
- Thermal resistance : 3 °C /W
- Thermal and short circuit protection system

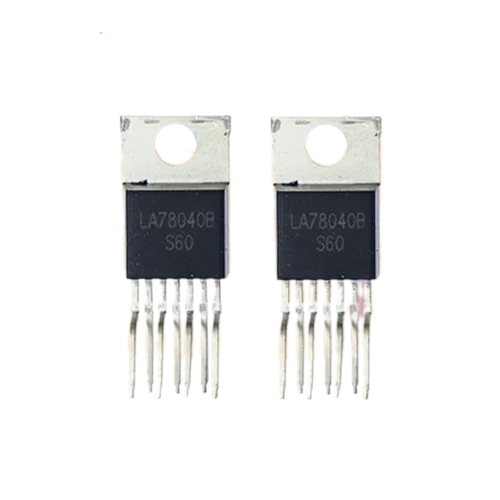

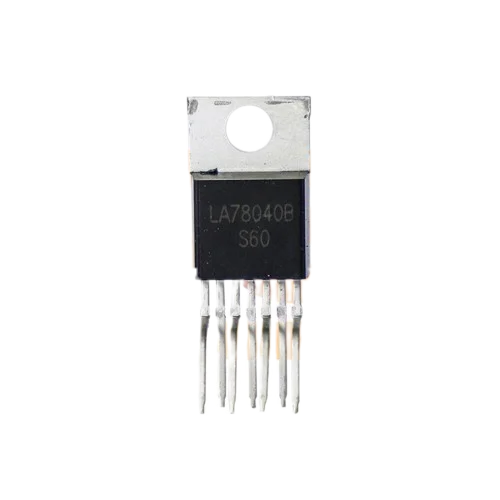

- This is a vertical deflection output IC.
- It is used for high image quality in TV and CRT displays that supports the use of a bus control system signal-processing IC.
- It can directly drive the deflection yoke (including the DC component).
- It provides a maximum deflection current of 1.8Ap-p, it is optimal for small and medium-size CRTs.
