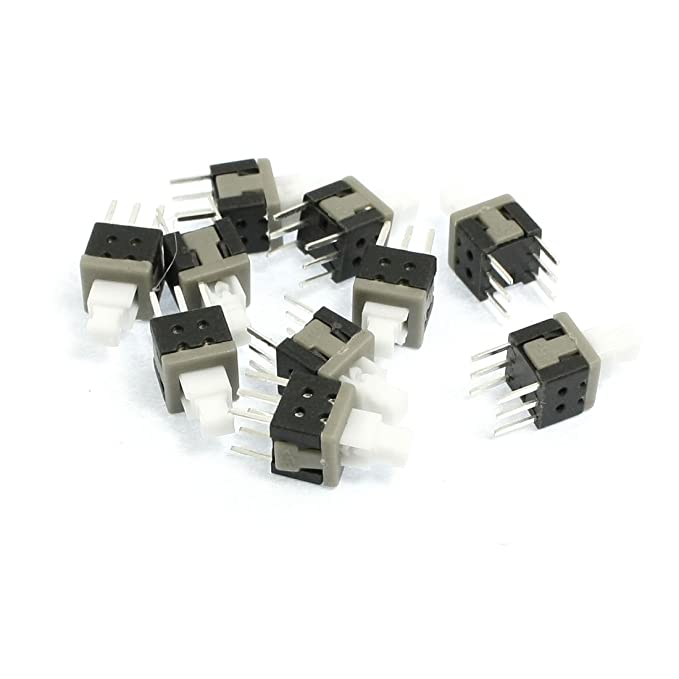

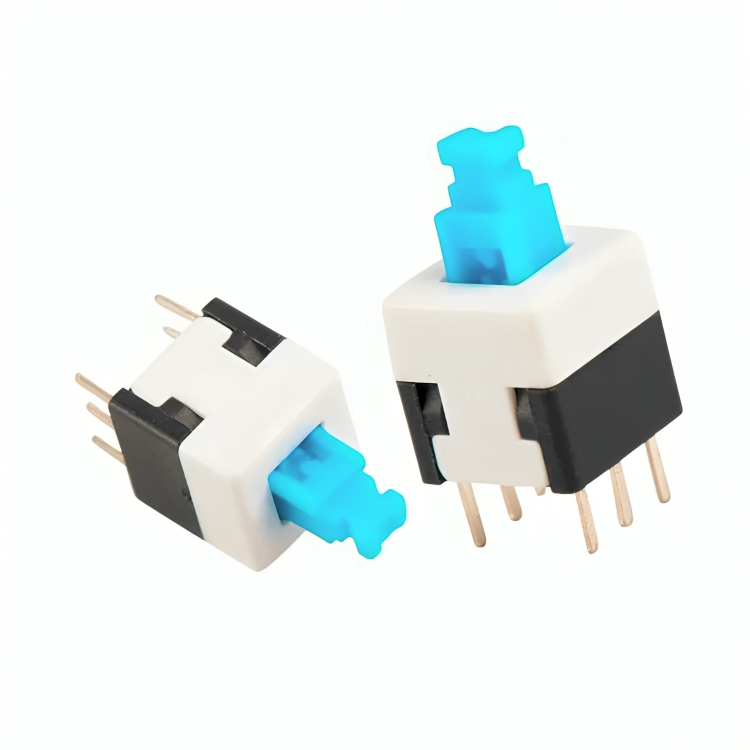

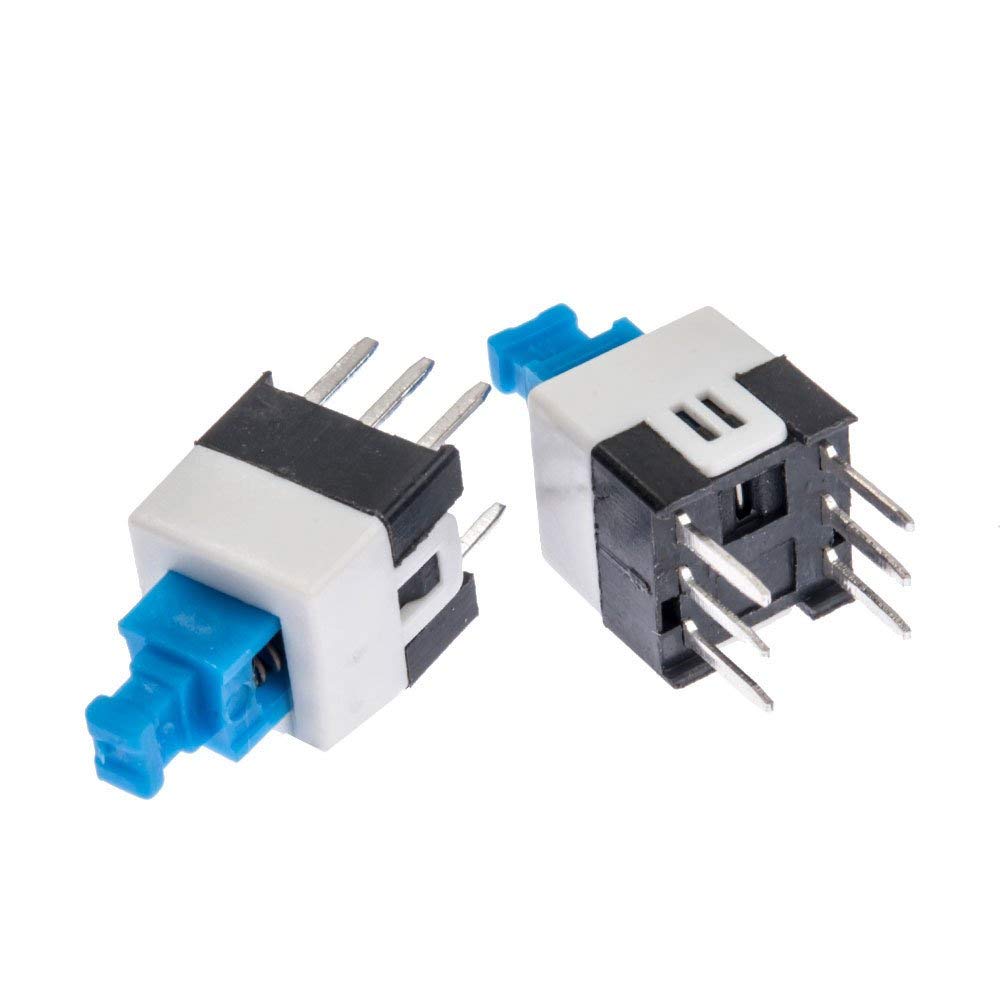

Name: Self locking Button Switch 6 pins Button Mini Push Button 25V 2A
SKU: 14524
Price: 10 INR
Availability: InStock

Description

Our high quality self-locking square button switch provides exactly on/off to your projects or as a replacement

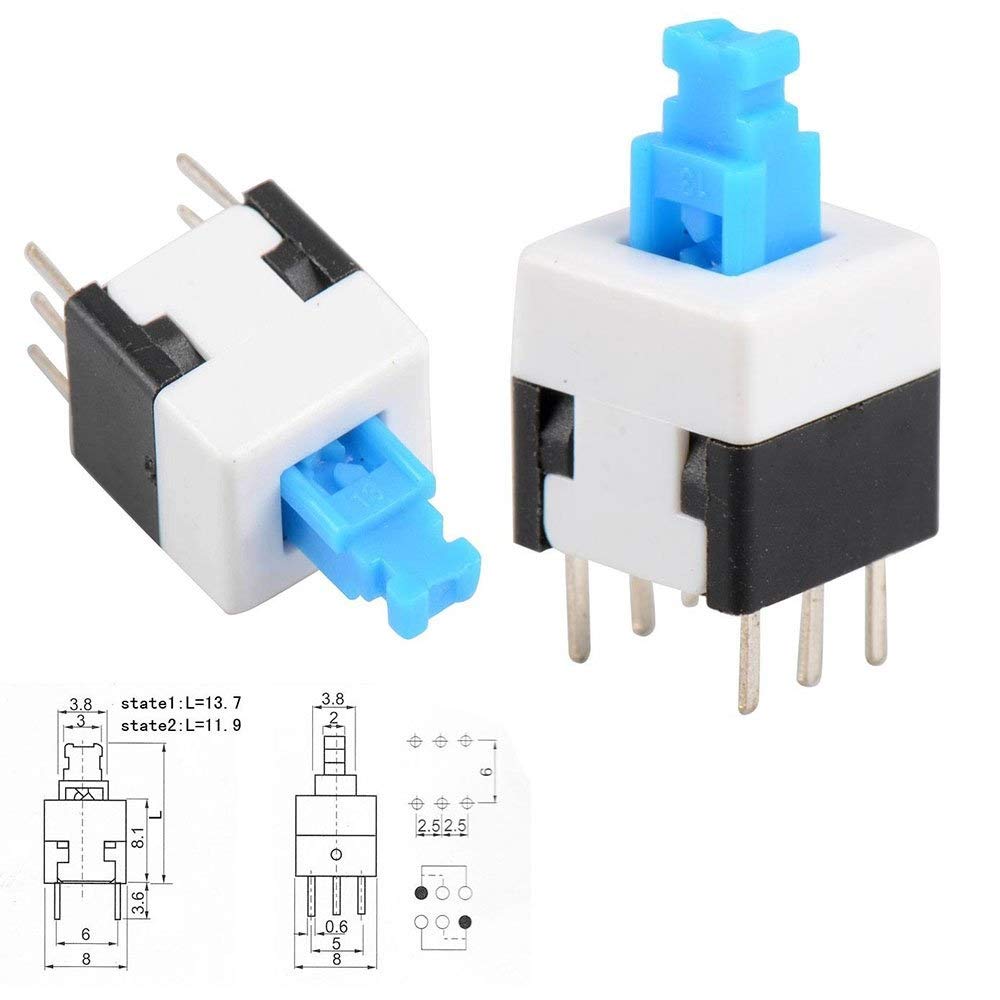

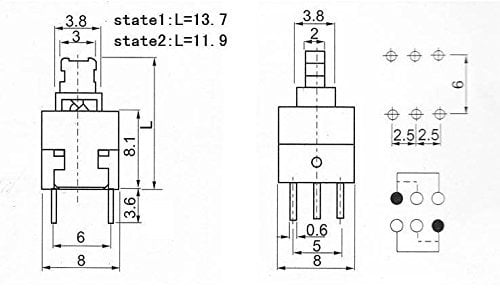

Temperature ：- 40~70°C, Rated Load :0.3A 60V AC /1.5A 25V AC; Size: 7x7x16mm (LxBxH)
Contact Resistance ：=0.02Ω, Withstand Voltage ：AC250V(50Hz)/min
Actuation Force : 100-350g, Insulation Resistance ：>=100M Ω, Life : 100000 times
Package Include: 1 x Switch
